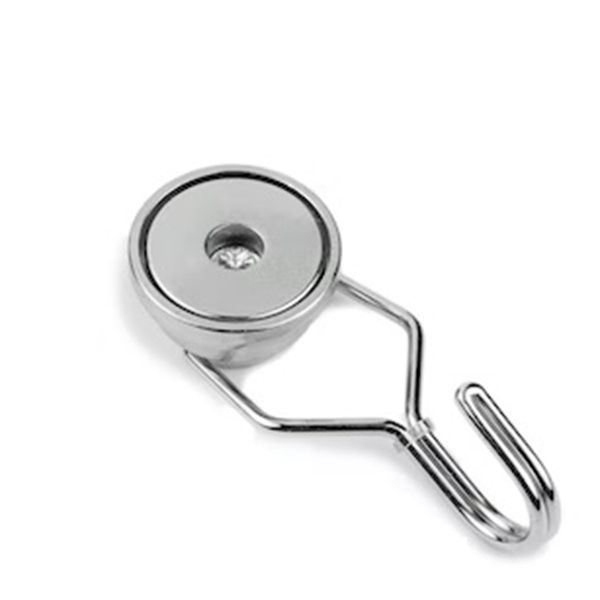

These swivel hook magnets are composed of neodymium cup magnets and steel hooks, the hooks are reversible and can rotate up, down, left and right. The swivel hook magnets (magnetic hooks) have unique structure and a variety of use effects. They can be switched between the ceiling hook and the wall hook at will.Neodymium swivel hook magnets(custom magnetic hooks) of the common size are available in stock.
Swivel hook magnets of neodymium have strongest holding force,which is several times of ferrite hooks.
Diameter dimension of 25mm, 32mm,36mm,40mm and 42m are the standard sizes of neodymium swivel hook magnets.
Swivel neodymium hook magnets are usually supplied with bright-nickel plating.
Model | D | A | B | C | H | L | W | Vertical Force (Kgs) | Side Force (Kgs) | Weight(g) |
RMH-D25 | 25 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 14 | 3.5 | 38 |
RMH-D32 | 32 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 23 | 5.5 | 52 |
RMH-D36 | 36 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 40 | 6.5 | 65 |
RMH-D40 | 40 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 50 | 7 | 84 |
RMH-D42 | 42 | 20 | 13.5 | 24 | 16.5 | 55 | 23 | 65 | 8 | 92 |
lf you have any questions, you can contact us to help you solve them.
