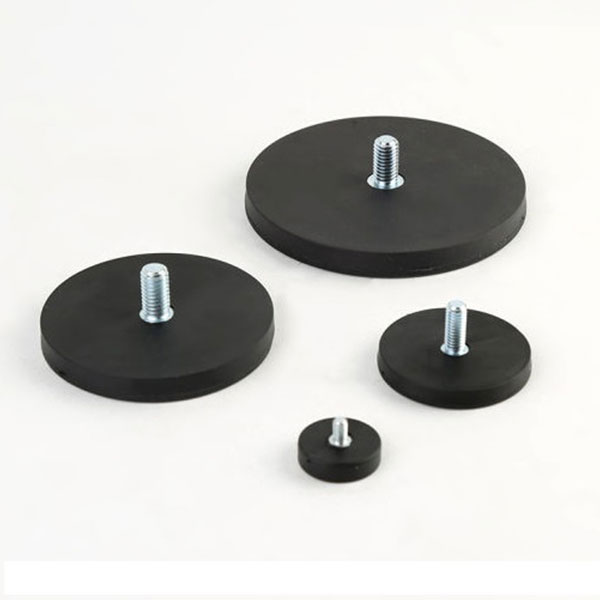

Rubber Coated Magnets With Threaded Bushing

There are threaded bushing on the top of all the rubber coated neodymium magnets in this category, these wholesale pot magnets are popular in the magnetic holding application. Threaded eyelet and hook are the most common accessories for rubber coated neodymium pot magnets with threaded bushing (stem). Internal thread rubber coated neodymium pot magnets with threaded bushing are supplied with standard diameter of 22mm, 31mm, 43mm, 66mm and 88mm. The threaded bushings are usually galvanized. The rubber coating is in black color if no requirement on color.

Characteristics Of Rubber Coated Pot Magnets With Threaded Bushing

Material: neodymium magnets + A3 steel + TPE rubber.

Dimension: Ø22x6mm, Ø31x6mm, Ø43x6mm, Ø66x8.5mm and Ø88x8.5mm.

Thread: Ø22:M4/M6; Ø31:M4/M6; Ø43:M4/M6; Ø66:M5/M6/M8; Ø88:M6/M8/10.

Magnetic Force: 5 - 42 kg varies with diameter.

Color: black, other color can be customized.

Specification Of Rubber Coated Pot Magnets With Threaded Bushing


specification of rubber coated pot magnets with threaded bushing

Items Code

D(mm)

H(mm)

L(mm)

d(mm)

M

Force(kg)

Weight(g)

RCINS-D12

12

6

10.5

8

M4

1

6

RCINS-D22

22

6

10.5

8

M4/M6

6.5

13

RCINS-D31

31

6

10.5

8

M4/M6

7.5

22

RCINS-D43

43

6

10.5

9

M4/M6

8.5

33

RCINS-D66

66

8.5

12

12

M5/M6/M8

18

105

RCINS-D88

88

8.5

13.5

15

M6/M8/10

42

192
